Vulnerability of Brazilian municipalities to hantavirus infections based on multi-criteria decision analysis
Emerging Themes in Epidemiology volume 12, Article number: 15 (2015)
Hantavirus infection is an emerging zoonosis transmitted by wild rodents. In Brazil, high case-fatality rates among humans infected with hantavirus are of serious concern to public health authorities. Appropriate preventive measures partly depend on reliable knowledge about the geographical distribution of this disease.
Incidence of hantavirus infections in Brazil (1993–2013) was analyzed. Epidemiological, socioeconomic, and demographic indicators were also used to classify cities’ vulnerability to disease by means of multi-criteria decision analysis (MCDA).
From 1993 to 2013, 1752 cases of hantavirus were registered in 16 Brazilian states. The highest incidence of hantavirus was observed in the states of Mato Grosso (0.57/100,000) and Santa Catarina (0.13/100,000). Based on MCDA analysis, municipalities in the southern, southeastern, and midwestern regions of Brazil can be classified as highly vulnerable. Most municipalities in northern and northeastern Brazil were classified as having low vulnerability to hantavirus cardiopulmonary syndrome.
Although most human infections by hantavirus registered in Brazil occurred in the southern region of the country, a greater vulnerability to hantavirus was found in the Brazilian Midwest. This result reflects the need to strengthen surveillance where the disease has thus far gone unreported.
Hantavirus infection is an emerging a zoonosis produced by Bunyaviridae viruses (genus Hantavirus). It is the cause of two distinct syndromes: hemorrhagic fever with renal syndrome (HFRS), which is endemic to Europe and Asia; and hantavirus cardiopulmonary syndrome (HCPS), which is restricted to the Americas . HCPS is an emerging disease mainly transmitted by wild rodents (Rodentia: Cricetidae: Sigmodontinae) . However, hantavirus infection has been described in insectivore mammal families, including Soricidae, Talpidae, Solenodontidae, and Nesophontidae. Hantavirus has also been detected in bats .
Hantavirus is currently registered all over Brazil. The high case-fatality rate of HCPS (~40 %) is of great concern to Brazilian public health authorities. Most patients require intensive health care , and case-fatality rates vary among Brazil’s five geographic regions [4–6]. The differences may be associated with circulating hantavirus strains in Brazil . The risk factors for hantavirus infections include involvement in agricultural, domestic, and leisure activities (Fig. 1), which are associated with human exposure to rodents or their excreta .
The first Brazilian cases of HCPS were reported in 1993. These cases were associated with massive rodent infestation, which itself was linked to deforestation and the establishment of precarious households . Poor living and housing conditions in rural areas are also strongly associated with hantavirus transmission in Brazil . Buildings in substandard conditions allow for the invasion of wild rodents, which are attracted to stored food . Other factors may also contribute to the occurrence of hantavirus: (1) rodent outbreaks associated with bamboo flowering; (2) improper environmental management; (3) urban informal housing settlements; and (4) ecosystem changes due to the construction of roads and hydroelectric dams [4, 6, 8, 11–18].
In the current study, the incidence of hantavirus infections in Brazil over the past 20 years (1993–2013) was analyzed. In addition, epidemiological, socioeconomic, and demographic indicators were used in multi-criteria decision analysis to classify vulnerability to disease in municipalities.
Cases of hantavirus were confirmed by laboratory tests, including serology for specific IgM antibodies (ELISA with recombinant antigens from hantavirus strains identified in the country), immunohistochemistry, and RT-PCR for hantavirus. Most of cases of hantavirus registered in our database were confirmed by laboratory tests. Some cases were confirmed using clinical and epidemiological criteria, as in the cases of individuals with acute respiratory failure who had been exposed to the same risk factors as the individuals in the laboratory-confirmed cases . Occurrence data on confirmed HCPS cases reported to the Brazilian Ministry of Health between 1993 and 2013 were included in the study. Data were obtained from the Brazilian National Notifiable Diseases Surveillance System (SINAN) . Descriptive analyses were based on demographic and epidemiological variables from investigation questionnaires. Healthcare professionals were responsible for filling out these forms. The questionnaires included clinical, epidemiological, and laboratory data. All confirmed cases of hantavirus in the municipalities that were the likely site of infection were counted. Average coefficients of incidence of hantavirus infection were calculated for municipalities, states, and the five Brazilian geopolitical regions (cases/100,000 inhabitants per year).
Socioeconomic and demographic data
Socioeconomic and demographic indicators were obtained from Brazilian censuses conducted by the Brazilian Institute of Geography and Statistics, or IBGE (http://www.ibge.gov.br).
The municipality indicators used were economic gains from agriculture, or EGA (2006), the municipal human development index, or MHDI (2008), and the degree of urbanization, or DU (2008). We selected EGA to represent farming production in each municipality, since farming production is thought to be associated with human exposure to wild rodents . The MHDI was selected because other studies have shown that human exposure to hantavirus is also linked to low levels of human development and poverty [1, 4, 8, 13, 15]. Finally, DU was selected because some studies have shown an association between urbanization and hantavirus occurrence [12, 16].
Multi-criteria decision analysis (MCDA)
Assessment of municipalities’ vulnerability to hantavirus infection is a multi-criteria decision problem . MCDA has been used to classify areas as vulnerable to Trypanosoma cruzi transmission in the USA  and in Brazil . This method is based on the ranking of values and is often used for decision making after the consideration of multiple aspects of descending importance, organized into a hierarchy [22, 23].
A free application known as the program to support decision making based on indicators (PRADIN), version 3.0 (http://www.anipes.org.br) was used for the MCDA. This application implements the Preference Ranking Organization Method for Enrichment of Evaluations (PROMETHEE II) algorithm  from routines written in Visual Basic 6.0, as presented by Gomes . MCDA has been applied with greater frequency in Brazil for the spatial identification of vulnerable areas, for health program monitoring, and to provide support for decision making based on indicators [24–26]. The importance assigned to the indicators used in the ranking was based on specific criteria: epidemiological indicators (hantavirus incidence) received a higher weight , and the others (economic gains from agriculture, municipal human development index, and degree of urbanization) received equal weights  in the MCDA analysis.
After their ranking, the municipalities were classified into quintiles. The geographic coordinates of the municipalities (http://www.ibge.gov.br) were used in the Tabwin 32 program (http://www2.datasus.gov.br/DATASUS/index) to produce vulnerability maps showing the occurrence of hantavirus infections in the country.
From 1993 to 2013, 1752 cases of hantavirus were registered in 16 Brazilian states. Most of cases of hantavirus were confirmed by laboratory tests (1637; 93.5 %); 79 (4.5 %) were confirmed by clinical and epidemiological criteria and 36 (2 %) were left blank in the forms. On average, 158 cases were registered per year, with a case-fatality rate of 38.5 % (Fig. 2). Most cases were registered in the states of Mato Grosso (285, 16.3 %), Santa Catarina (281, 16.0 %), Minas Gerais (233, 13.3 %), Paraná (205, 11.7 %), and São Paulo (190, 10.8 %). In total, hantavirus infections were registered in 464 municipalities. Santo Afonso and Campo Novo do Parecis, municipalities in the state of Mato Grosso, were found to have the highest incidences, at 15.7/100,000 and 13.4/100,000, respectively.

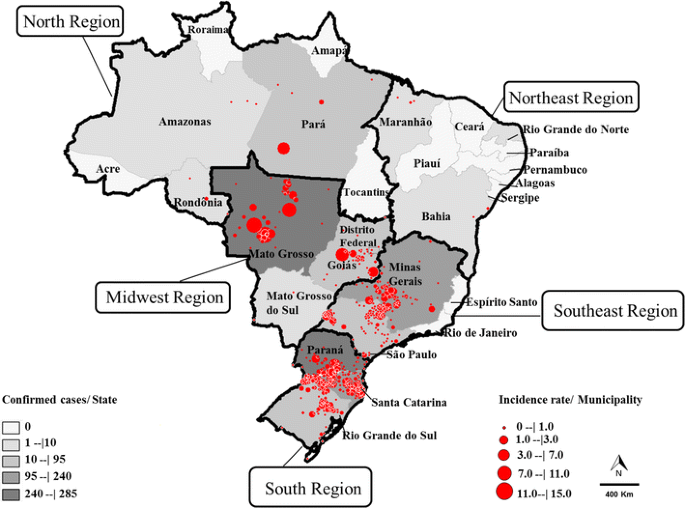

As shown in Fig. 3, the highest incidence rates were observed in the states of Mato Grosso (0.57/100,000) and Santa Catarina (0.13), and the highest case-fatality rates were observed in the states of Rio Grande do Norte (100 %), São Paulo (54.2 %), Mato Grosso do Sul (50 %), Goiás (46.3 %), Pará (42.8 %), and Distrito Federal (41.1 %).
Epidemiological and demographic profiles of confirmed cases of hantavirus during the period under analysis are presented in Table 1. A higher incidence rate was observed in the midwestern region, where most of the people infected were adult white males from rural areas. However, higher fatality rates were observed among mixed-race females between 20 and 34 years of age.

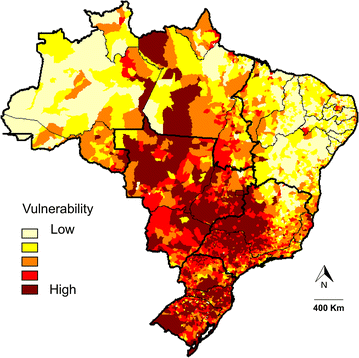

Based on the MCDA, municipalities in southern, southeastern, and midwestern Brazil were classified as highly vulnerable (Fig. 4). Most of the municipalities in northern and northeastern Brazil were classified as having low vulnerability to HCPS.
Hantavirus infections have been registered all over Brazil over the last 20 years, but the incidence is higher in two states (Mato Grosso and Santa Catarina). Most of the most vulnerable municipalities were located in Midwest Brazil. The number of cases of hantavirus in Brazil over the last 20 years was twice as high as the number in the USA during the same period . Moreover, the high case-fatality rates provide evidence of the virus’s impact on public health and underscore the need for a specific and reliable hantavirus infection diagnosis techniques in the country . An HCPS treatment protocol has been recommended by the Brazilian Ministry of Health of Brazil , but the high case-fatality rates observed are associated with low clinical suspicion of hantavirus infections.
The results found herein indicate a large area of vulnerability that primarily encompasses southern, southeastern, and midwestern Brazil. Most municipalities in northern and northeastern Brazil were found to have lower vulnerability to HCPS. Agricultural activities and urban expansion toward forested areas may favor the spread of hantavirus, as observed by Santos . The current study showed that the municipalities with greater vulnerability to occurrence of hantavirus had agriculture-based economies and many areas of urban expansion. These factors may promote interactions between rodents and humans. The municipalities with the highest incidence rates (Santo Afonso and Campo Novo do Parecis) are located in the in the state of Mato Grosso, which is within the midwestern region of the country and which represents a Cerrado-Amazon transition area. In recent years, widespread expansion of the agricultural frontier has occurred in these municipalities, which now have agriculture-based economies.
Hantavirus infections have recently been reported in municipalities within northern and northeastern Brazil [29, 30]. In the northeastern region, hantavirus infections have been reported in the states of Maranhão, Rio Grande do Norte, Bahia, and Ceará [31–34]. Interestingly, most of the municipalities in the state of Mato Grosso do Sul presented high vulnerability, a finding which is in contrast with the low HPCS incidence in this state. Because neighboring states have recorded several cases of hantavirus in recent years, it is likely that many cases go unreported in this state. Therefore, we recommend strengthened hantavirus surveillance in Mato Grosso do Sul.
Limitations of this study include the use of secondary data from a passive surveillance system implemented by the Brazilian Ministry of Health, as well as the inability to perform temporal patterning of the socioeconomic and demographic indicators obtained from 2006 to 2008. However, given the wide territorial range of Brazil and the increased incidence of HCPS since 2005, we believe that these limitations have not influenced the final results of the study. Future studies analyzing vulnerability to hantavirus infections should include data on mammal reservoirs. We did not consider host data, because few studies in the literature analyzed infection rates among rodent population in Brazil [35, 36]. However, a study analyzed the distribution of two main rodent reservoirs in the Atlantic rainforest and in the Brazilian Cerrado and estimated a broader area of risk of hantavirus transmission in the southeastern and southern regions of Brazil, an area which coincided with HCPS distribution .
MCDA is an innovative method that can be used to estimate vulnerability to tropical diseases. The PRADIN software was developed to help train technicians in the public sector and in non-governmental organizations, as well as researchers working with social indicators and public policy . Its use in classifying vulnerability to disease can support surveillance and disease control programs. Stevens et al.  mapped the introduction and spread of H5N1 avian influenza virus in African countries and identified several vulnerable areas. Sarkar et al.  analyzed suitability for vector species and identified areas of high risk for Chagas disease in Texas. Multi-criteria techniques have also been used to identify which counties are at high risk of Chagas disease occurrence, even if the parasite has not yet been reported within their borders. The Brazilian Ministry of Health recommends MDCA for determining municipalities’ vulnerability to disease . The Brazilian Program for Chagas Disease Control has also applied the MCDA to analyze municipalities’ vulnerability to this disease . In Canada, MCDA has also been used in an innovative approach to zoonosis management, with promising results for Lyme disease .
Although most human infections by hantavirus have been registered in southern Brazil, a greater vulnerability to hantavirus was estimated in the midwestern region of the country. This disparity reflects the need for strengthened surveillance in areas where the disease has thus far gone unreported. These results may help guide more adequate surveillance activities and the prioritization of interventions the reduce frequency and severity of HCPS cases in Brazil.
Organización Panamericana de la Salud—OPS. Hantavírus en las Américas: Guía para el diagnóstico, el tratamiento, la prevención y el control. (OPS. Cuaderno Técnico. 47) Washington, DC, OPS, 1999. pp 1–66.
Nichol ST, Spiropoulou CF, Morzunov S, Rollin PE, Ksiazek TG, Feldmann H, et al. Genetic identification of a novel Hantavírus associated with an outbreak of acute respiratory illness in the southwestern Unites States. Science. 1993;262:914–7.
Oliveira RC, Guterres A, Fernandes J, D’Andrea PS, Bonvicino CR, Lemos ERS. Hantavirus reservoirs: current status with an emphasis on data from Brazil. Viruses. 2014;6:1929–73.
Oliveira SV, Fonseca LX, Barros-Silva P, Caldas EP. Análise do perfil epidemiológico da hantavirose no Brasil no período de 2007 a 2012. Rev Patol Trop. 2014;43:131–42.
Carvalho de Oliveira R, Cordeiro-Santos M, Guterres A, Fernandes J, de Melo AX, João GAP, et al. Rio mamore virus and hantavirus pulmonary syndrome, Brazil. Emerg Infect Dis. 2014;20:1568–70.
Willemann MCA, Oliveira SV. Risk factors associated with hantavirosis fatality: a regional analysis from a case-control study in Brazil. Rev Soc Bras Med Trop. 2014;47:47–51.
Firth C, Tokarz R, Simith DB, Nunes MR, Bhat M, Rosa ES, et al. Diversity and distribution of hantavíruses in South America. J Virol. 2012;86:13756–66.
Ministério da Saúde do Brasil, Secretaria de Vigilância em Saúde, Departamento de Vigilância Epidemiológica. Guia de Vigilância Epidemiológica. Volume Único, Editora MS, Brasília. 2014. pp 1–812.
Silva MV, Vasconcelos MJ, Hidalgo NTR, Veiga APR, Canzian M, Marotto PCF, et al. Hantavírus pulmonary syndrome. Report of the first three cases in São Paulo, Brazil. Rev do Inst de Med Trop de SP. 1997;4:231–4.
Fundação Nacional de Saúde do Brasil. Manual de controle de roedores. Brasília: Funasa; 2002. p. 1–132.
Pereira LE, Souza LTM, Souza RP, Bisordi I, Suzuki A, Katz G. Histórico da vigilância eco-epidemiológica do hantavírus no Brasil. Rev CIP. 1999;3:5–12.
Santos JP, Steinke ET, García-Zapata MT. Land use and occupation and hantavirosis dissemination in the São Sebastião region. Federal District: 2004–2008. Rev Soc Bras Med Trop. 2010;1:53–7.
Oliveira SV, Lassance C, Nascimento GL, Souza LRO, Oliveira PB, Gurgel-Goncalves R. Conhecimentos, atitudes e práticas sobre hantavirose em um assentamento rural de Planaltina—Distrito Federal, 2011. Scie Plena. 2012;8:1–7.
Badra SJ, Maia FG, Figueiredo GG, Dos Santos Junior GS, Campos GM, Figueiredo LT, et al. A retrospective serologic survey of hantavirus infections in the county of Cássia dos Coqueiros, State of São Paulo. Brazil. Rev Soc Bras Med Trop. 2012;45:468–70.
Terças AC, dos Atanaka SM, Pignatti MG, Espinosa MM, Via AV, Menegatti JA. Hantavirus pulmonary syndrome outbreak, Brazil, December 2009–January 2010. Emerg Infect Dis. 2013;19:1824–7.
Santos JP, Oliveira SV, Steinke VA, Garcia-Zapata MTA. Análise da distribuição espacial da hantavirose no Distrito Federal, Brasil, 2004–2010. Rev Bras Geo Med e da Saúde. 2014;10:98–109.
Oliveira SV, Folster I, Zeccer S, Fonseca L, Pereira SVC, Caldas EP. Investigação de ratada associada a florescimento e frutificação de taquaras em São Francisco do Sul, Santa Catarina, Brasil, 2012. Rev Baiana de Saud Pub. 2013;37:1071–9.
Katz G, Williams RJ, Burt MS, de Souza LT, Pereira LE, Mills JN, et al. Hantavírus pulmonary syndrome in the state of São Paulo, Brazil. 1993–1998. Vect Borne Zoo Dis. 2001;3:181–90.
Vinhaes MC, de Oliveira SV, Reis PO, de Lacerda Sousa AC, Silva RA, Obara MT, et al. Assessing the vulnerability of brazilian municipalities to the vectorial transmission of Trypanosoma cruzi using multi-criteria decision analysis. Act Trop. 2014;137:105–10.
Moffett A, Sarkar S. Incorporating multiple criteria into the design of conservation area networks: a minireview with recommendations. Divers Distrib. 2006;12:125–37.
Sarkar S, Strutz SE, Frank DM, Rivaldi CL, Sissel B, Sánchez-Cordero V. Chagas disease risk in Texas. PLoS Negl Trop Dis. 2010;4:e836.
Brans J, Mareshcal B. Promethee methods. In: Multiple criteria decision analysis: state of the art surveys. Springer, Berlin. 2005. pp. 163–195.
Gomes LFAM, Araya MCG, Carignano C. Tomada de decisão em cenários complexos: introdução aos métodos discretos do apoio multicritério à decisão. São Paulo, SP, 1ª ed., Pioneira Thomson Learning. 2004. pp. 1–126.
Morais DC, Almeida AT. Modelo de decisão em grupo para gerenciar perdas de água. Rev de Pesq Oper. 2006;26:567–84.
Jannuzzi PM. Análise multicritério e a decisão em políticas públicas: Implementação da técnica no aplicativo Pradin e aplicações. Escola Nacional de Ciências Estatísticas, no. 29. 2010.
Oliveira SV, Gurgel-Goncalves R. Análise preditiva da distribuição geográfica de hantavírus no Brasil. Rev P Amazônica Saud. 2013;4:73–4.
Knust B, Rollin PE. Twenty-year summary of surveillance for human hantavirus infections, United States. Emerg Infect Dis. 2013;19:1934–7.
Pinto Junior VL, Hamidad AM, Albuquerque Filho DO, Santos VM. Twenty years of hantavirus pulmonary syndrome in Brazil: a review of epidemiological and clinical aspects. Infect Dev Ctries. 2014;8:137–42.
Gimaque JB, Bastos Mde S, Braga WS, Oliveira CM, Castilho Mda C, Figueiredo RM, et al. Serological evidence of hantavirus infection in rural and urban regions in the state of Amazonas, Brazil. Mem Inst Oswaldo Cruz. 2012;107:135–7.
Lima DM, Sabino-Santos Junior G, Oliveira AC, Fontes RM, Colares JK, Araújo FM, et al. Hantavirus infection in suspected dengue cases from State of Ceará, Brazil. Rev Soc Bras Med Trop. 2011;44:795–6.
Mendes WS, Silva AAM, Neiva RF, Costa NM, Assis MS, Vidigal PMO, et al. Serologic survey of hantavirus infection, Brazilian Amazon. Emerg Infect Dis. 2010;16:890–1.
Santos IO, Figueiredo GG, Figueiredo LT, Azevedo MR, Novo NF, Vaz CA. Serologic survey of hantavirus in a rural population from the northern State of Mato Grosso, Brazil. Rev Soc Bras Med Trop. 2013;46:30–3.
Montoya-Ruiz C, Diaz FJ, Rodas JD. Recent evidence of hantavirus circulation in the American tropic. Viruses. 2014;6:1274–93.
Lima DM, Sabino-Santos G Junior, Oliveira AC, Fontes RM, Colares JK, Araújo FM, Cavalcanti LP, da Fonseca BA, Figueiredo LT, Pompeu MM. Hantavirus infection in suspected dengue cases from State of Ceará, Brazil. Rev Soc Bras Med Trop. 2011;4:795–6.
Oliveira SV, Escobar LE, Peterson AT, Gurgel-Goncalves R. Potential geographic distribution of hantavirus reservoirs in Brazil. PLoS One. 2013;8:e85137.
Limongi JE, Costa FC, Paula MBC, Pinto RMC, Oliveira MLA, Pajuaba Neto AA, et al. Síndrome cardiopulmonar por hantavírus no Triângulo Mineiro e alto Paraíba, MG 1998–2005; aspectos clínico-epidemiológicos de 23 casos. Rev Soc Bras Med Trop. 2007;40:295–9.
Stevens KB, Costard S, Metras R, Pfeiffer DU. Mapping the likelihood of introduction and spreed of highly pathogenic avian influenza virus H5N1 in Africa, Ghana, Ethiopia, Kenya and Nigeria using multicriteria decision modelling. UK: DFID/RVC/IFPRI/ILRI/RDRC; 2009. p. 1–32.
Ministério da Saúde do Brasil, Secretaria-Executiva, Área de Economia da Saúde e Desenvolvimento. Avaliação de tecnologias em saúde: ferramentas para a gestão do SUS, Ministério da Saúde. Secretaria-Executiva, Brasília, editora do Ministério da Saúde. 2009. pp. 1–110.
Aenishaenslin C, Hongoh V, Cissé HD, Hoen AG, Samoura K, Michel P, Bélanger D. Multi-criteria decision analysis as an innovative approach to managing zoonoses: results from a study on Lyme disease in Canada. BMC Publ Health. 2013;13(1):897.
RGG and SVO conceived and designed the experiments; SVO and LXF performed the experiments; SVO, KMAV, LXF, FVPM, SVCP, EPC, PLT and RGG analyzed the data; RGG and SVO contributed materials/analysis tools and RGG, SVO and PLT wrote the manuscript. All authors read and approved the final manuscript.
We would like to thank the team from the Zoonosis Surveillance Technical Unit and the technical group for rodent-related diseases from the Brazilian Ministry of Health, M. R. Donalisio, M. T. Obara, and Mattar S. for reviewing the manuscript.
Compliance with ethical guidelines
Competing interests The authors declare that they have no competing interests.
Funding Stefan Vilges de Oliveira received financial support from the Brazilian agency known as the Coordination for the Improvement of Higher Education Personnel (CAPES; http://www.capes.gov.br). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
